3411766 Cummins Diesel Engine Injector
September 13, 2025
3897596 Cummins fuel injector for diesel engines
September 13, 20253411767 fuel injector for Cummins ISX Engines
Key Information
Part Number: 209982X, 2391, 2592, 3083662, 3411385, 3411385RX, 3411767, 3411767PX, 3411767R, 3411767RX,
Engine Make: CUMMINS
Inspection Report: Yes
Warranty: 12 Months
Supply Ability: In stock
Payment Way: Paypal, Western Union, Visa, Mastercard, T/T
Details: One model in a neutral box or specific box required by clients.

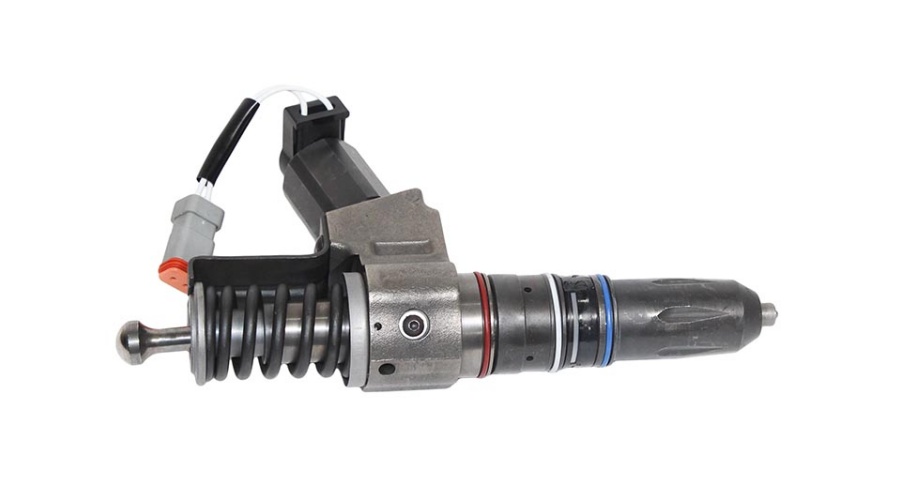

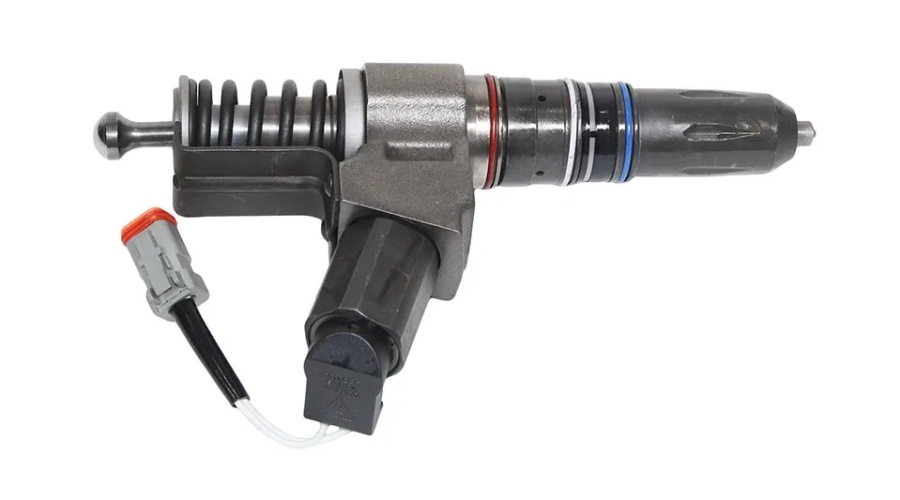

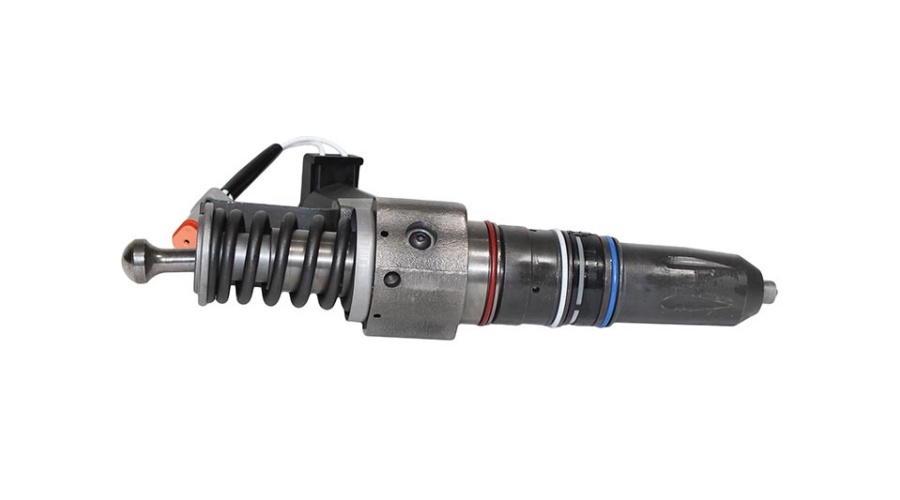

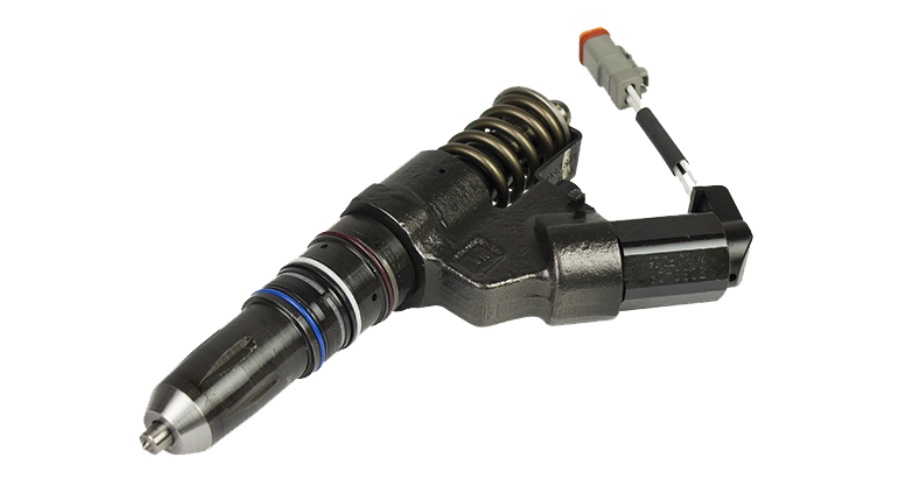

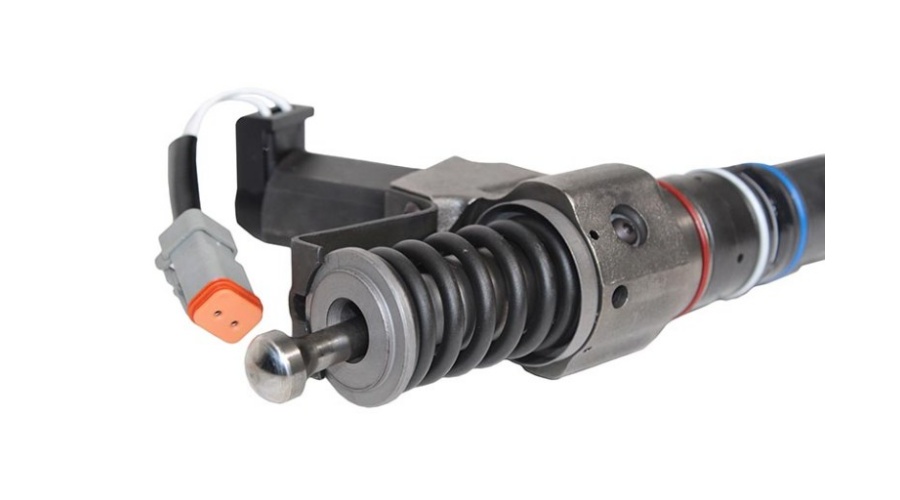

The Cummins fuel injector with part number 3411767 is a critical component in fuel delivery systems for Cummins diesel engines. Here’s what you need to know:
Part Number: 3411767
Compatibility: Used in various Cummins engines, including ISX, QSX, and other heavy-duty applications.
Function: Delivers precise amounts of fuel into the combustion chamber at high pressure for efficient engine performance.
3411767 Common Applications:
Cummins ISX Engines (e.g., 2003-2010 models) ,Cummins QSX15 Engines ,Heavy-duty trucks, construction equipment, and industrial machinery.
What kind of CUMMINS fuel injector will you get from Trade Ultra ?
1. You’ll get it all with; 100% O-ring replacement for proper sealing, a new Actuator Assembly, Spill Valve, To top it off, every nozzle is tested for 100% proper fuel delivery. It just doesn’t get much better than that.
2. Meticulous testing? You got it! This injector goes through a strict reassembling and testing process for fuel delivery, injection pressure, and timing. If you want more power and reduced emissions, this is the way to go.
3.To put things in perspective, you’re getting proper fit and function because strict OE specifications are met.
Cummins Fuel Injector 3411767 – Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 3411767 |
| OEM Replacement | 209982X, 2391, 2592, 3083662, 3411385, 3411385RX, 3411767, 3411767PX, 3411767R, 3411767RX, 3411767X, EX631767, FS3411767RX, MCBR3411767, PRO3411767R, R-3411767, R3411767 |
| Engine Compatibility | Cummins ISX (2003-2010), QSX15, Signature 600 |
| Injector Type | Electronic Unit Injector (EUI) |
| Fuel System | High-Pressure Common Rail (HPCR) |
| Operating Pressure | Up to 30,000 psi (2,070 bar) |
| Voltage Requirement | 12V or 24V (Depends on ECM) |
| Flow Rate | Varies by calibration (typically 200-400 cc/min at rated pressure) |
| Nozzle Type | Multi-orifice (e.g., 6-8 holes) |
| Spray Angle | 145° - 155° (varies by application) |
| Seal Type | Copper crush washer & O-rings |
| Torque Specification | 50-55 Nm (37-41 lb-ft) (Follow Cummins service manual) |
| Weight | ~1.2 kg (2.65 lbs) |
| Electrical Connector | Deutsch DT or AMP-style (varies by model) |
| Expected Lifespan | 500,000 - 750,000 miles (with proper maintenance) |
